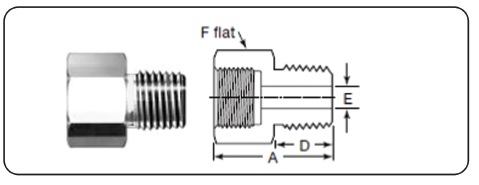

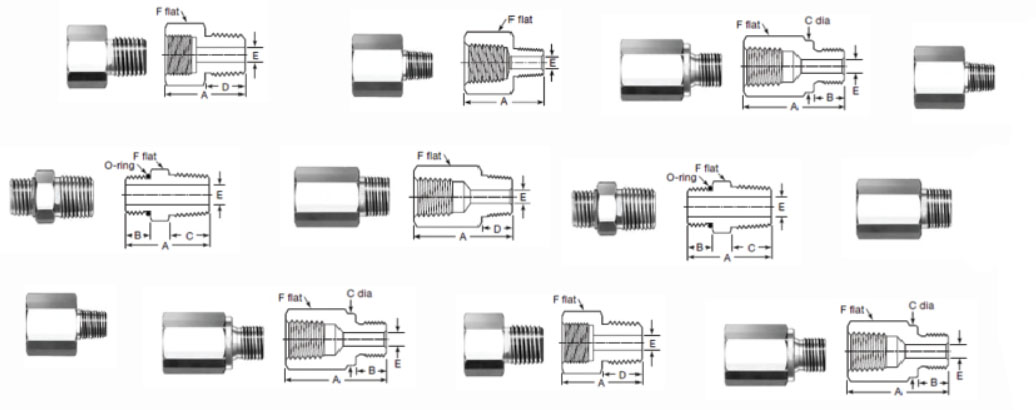

Adaptor
| ISO Thread Size in. | NPT Size in. | Dimensions mm | |||
| A | D | E | F | ||
| 1/4 | 1/4 | 36.3 | 14.2 | 7.1 | 19.1 |
| 3/8 | 3/8 | 38.4 | 14.2 | 9.6 | 22.2 |
| 1/2 | 1/2 | 49.8 | 19.1 | 11.9 | 27 |
| SAE/MS Thread Size in. | NPT Size in. | Dimensions mm | |||
| A | B | E | F | ||
| 7/16-20 | 1/4 | 33.5 | 9.1 | 5.1 | 19.1 |
| 9/16-18 | 3/8 | 34.5 | 9.9 | 7.1 | 23.8 |
| 3/4-16 | 1/2 | 41.1 | 11.2 | 10.7 | 27 |
| 1 1/16-12 | 3/4 | 46.2 | 15 | 16.7 | 34.9 |
| 1 5/16-12 | 1 | 53.8 | 15 | 22.4 | 41.3 |

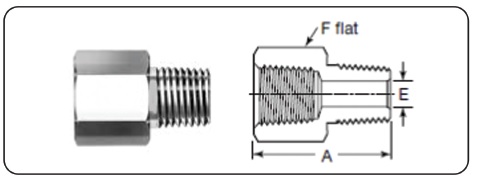

| NPT Size in. | Dimensions mm | ||
| A | E | F | |
| 1/8 | 27.9 | 4.8 | 14.3 |
| 1/4 | 35.6 | 7.1 | 19.1 |
| 3/8 | 38.4 | 9.6 | 22.2 |
| 1/2 | 49.3 | 11.9 | 27 |
| 3/4 | 51.3 | 15.7 | 33.3 |
| 1 | 57.9 | 22.4 | 41.3 |
| Heavy-Wall Female to Male NPT | |||
| 1/4 | 36.3 | 5.8 | 25 |
| 1/2 | 51.3 | 9.9 | 38.1 |
| ISO Thread Size in. | Dimensions mm | ||
| A | E | F | |
| 1/8 | 27.7 | 4.8 | 14.3 |
| 1/4 | 36.1 | 7.1 | 19.1 |
| 3/8 | 38.1 | 9.6 | 22.2 |
| 1/2 | 49.5 | 11.9 | 27 |
| NPT Size in. | ISO Thread Size in. | Dimensions mm | ||||
| A | B | C | E | F | ||
| 1/8 | 1/8 | 25.1 | 8.1 | 13.7 | 4.1 | 14.3 |
| 1/4 | 1/4 | 33.5 | 11.9 | 17.8 | 5.8 | 19.1 |
| 3/8 | 3/8 | 35.8 | 11.9 | 21.8 | 7.9 | 22.2 |
| 1/2 | 1/2 | 44.2 | 14 | 25.9 | 11.9 | 27 |
| 3/4 | 3/4 | 48 | 16 | 31.8 | 15.7 | 33.3 |
| 1 | 1 | 53.3 | 18 | 38.9 | 19.8 | 41.3 |
NPTF to Male ISO tapered thread (RT)
| NPT Size in. | ISO Thread Size in. | Dimensions mm | |||
| A | D | E | F | ||
| 1/8 | 1/8 | 27.7 | 9.6 | 4.8 | 14.3 |
| 1/4 | 1/4 | 36.1 | 14.2 | 7.1 | 19.1 |
| 3/8 | 3/8 | 38.1 | 14.2 | 9.6 | 22.2 |
| 1/2 | 1/2 | 49.3 | 19.1 | 11.9 | 27 |
| 3/4 | 3/4 | 51.3 | 19.1 | 15.7 | 33.3 |
| 1 | 1 | 58.4 | 23.9 | 22.4 | 41.3 |

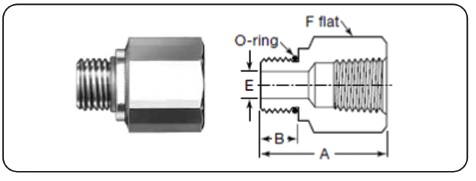

| SAE/ MS Thread Size in. | NPT Size in. | Dimensions mm | ||||
| A | B | C | E | F | ||
| 7/16-20 | 1/4 | 30.50 | 9.10 | 14.20 | 5.10 | 14.3 |
| 9/16-18 | 3/8 | 32.00 | 9.10 | 14.20 | 7.10 | 17.5 |
| 3/4-16 | 1/2 | 38.90 | 11.20 | 19.10 | 10.70 | 22.2 |
| 1 1/16-12 | 3/4 | 44.40 | 15.00 | 19.10 | 15.70 | 31.8 |
| 1 5/16-12 | 1 | 50.8 | 15 | 23.9 | 22.4 | 38.1 |

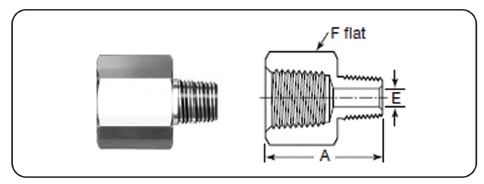

Reducing Adaptor
| Female NPT Size in. | Male NPT Size in. | Dimensions mm | ||
| A | E | F | ||
| 1/8 | 1/16 | 27.7 | 3 | 14.3 |
| 1/4 | 1/8 | 32 | 4.8 | 19.1 |
| 3/8 | 1/8 | 33.8 | 4.8 | 22.2 |
| 1/4 | 38.1 | 7.1 | ||
| 1/2 | 1/8 | 40.1 | 4.8 | 27 |
| 1/4 | 44.7 | 7.1 | ||
| 3/8 | 44.4 | 9.6 | ||
| 3/4 | 1/4 | 47 | 7.1 | 33.3 |
| 3/8 | 46.2 | 9.6 | ||
| 1/2 | 51.3 | 11.9 | ||
| 1 | 1/4 | 49.8 | 7.1 | 41.3 |
| 1/2 | 54.9 | 11.9 | ||
| 3/4 | 55.1 | 15.7 | ||
| Heavy-Wall Female to Male NPT | ||||
| 1/2 | 1/4 | 46 | 5.8 | 38.1 |
| Female ISO Thread Size in. | Male ISO Thread Size in. | Dimensions mm | ||
| A | E | F | ||
| 1/4 | 1/8 | 32 | 4.8 | 19.1 |
| 3/8 | 1/4 | 38.1 | 7.1 | 22.2 |
| 1/2 | 1/4 | 44.7 | 7.1 | 27 |
| 3/8 | 44.4 | 9.6 | ||
Gauge Adaptor
| ISO Thread Size in. | NPT Size in. | Dimensions mm | |||
| A | D | E | F | ||
| 1/4 | 1/4 | 30.2 | 14.2 | 5.6 | 19.1 |
| 3/8 | 3/8 | 32.3 | 14.2 | 6.6 | 23.8 |
| 1/2 | 1/2 | 42.7 | 19.1 | 7.1 | 27 |
