Elbow Tube Fittings

elbow_tube_fittings
Union Elbow
elbow_tube_fittings
Tube OD in Dimensions mm
A D E F
1/16 17.80 8.60 1.30 9.5
1/8 22.40 12.70 2.30 9.5
3/16 25.40 13.70 3.00 12.7
1/4 26.90 15.20 4.80 12.7
5/16 28.70 16.30 6.40 12
3/8 30.50 16.80 7.10 15.9
1/2 36.10 22.90 10.40 20.6
5/8 38.10 24.40 12.70 23.8
3/4 39.90 24.40 15.70 27
7/8 44.70 25.90 18.30 34.9
1 49.00 31.20 22.40 34.9
1 1/8 55.10 31.20 24.60 42.9
1 1/4 67.80 41.10 27.70 42.9
1 1/2 78.70 50.00 34.00 51
2 107.20 67.60 46.00 69.9




Tube OD Dimensions mm
A D E F
3 22.3 12.9 2.4 9.5
4 25.4 13.7 2.4 12.7
6 27.0 15.3 4.8 12.7
8 28.8 16.2 6.4 14.3
10 31.5 17.2 7.9 17.5
12 36.0 22.8 9.5 20.6
14 38.0 24.4 11.1 23.8
15 38.0 24.4 11.9 23.8
16 38.0 24.4 12.7 23.8
18 39.8 24.4 15.1 27
20 44.6 26.0 15.9 34.9
22 44.6 26.0 18.3 34.9
25 49.1 31.3 21.8 34.9
28 64.0 36.6 21.8 41
55.4 31.6 24.6 42.9
30 69.9 39.6 26.2 46
32 72.3 42.0 28.6 46
38 84.0 49.4 33.7 55
50 106 65.0 45.2 69.9

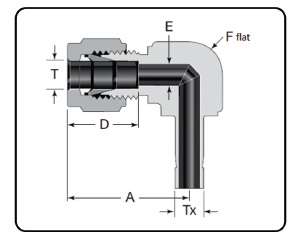

Swivel Elbow
elbow_tube_fittings
Tube OD in Dimensions mm
T Tx A D E F
1/4 1/4 26.90 15.20 4.30 12.7
3/8 30.50 16.80 4.30 15.9
3/8 3/8 30.50 16.80 6.90 15.9
1/2 36.10 22.90 6.90 20.6
1/2 1/2 36.10 22.90 9.40 20.6


Tube OD Dimensions mm
T Tx A D E F
6 6 27.0 15.3 4.6 12.7
12 12 38.1 22.8 8.8 23.8

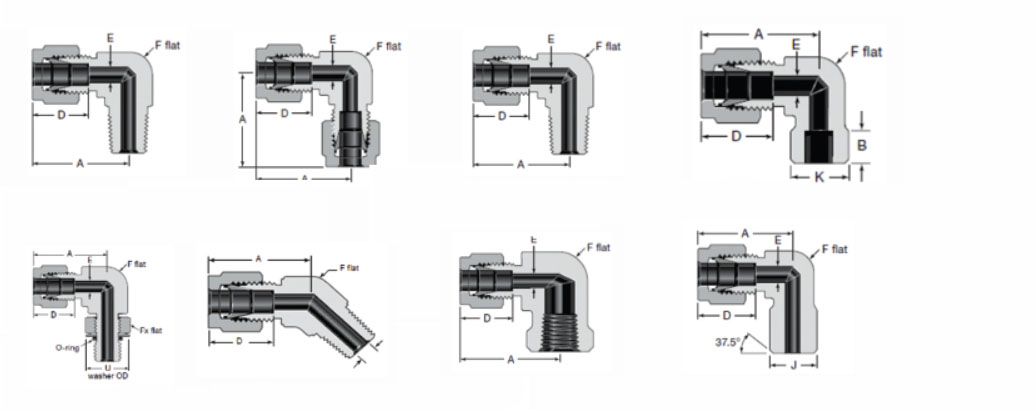

Male Elbow Connector
elbow_tube_fittings

NPT

Tube OD in NPT Size in Dimensions mm
A D E F
1/16 1/16
1/8		 19.10 8.60 1.30 11.1
1/8 1/16
1/8
1/4		 23.6
23.6
24.6		 12.70 2.30 11.1
11.1
12.7
3/16 1/8
1/4		 25.40 13.70 3.00 12.7
1/4 1/16
1/8
1/4
3/8
1/2		 26.9
26.9
26.9
29.7
31.8		 15.20 3
4.8
4.8
4.8
4.8		 12.7
12.7
12.7
17.5
20.6
5/16 1/8
1/4
3/8		 28.7
28.7
30.5		 16.30 4.8
6.4
6.4		 14.3
14.3
17.5
3/8 1/8
1/4
3/8
1/2
3/4		 30.5
30.5
31.2
33.3
37.1		 16.80 4.8
7.1
7.1
7.1
7.1		 15.9
15.9
17.5
20.6
27
1/2 1/4
3/8
1/2
3/4		 36.1
36.1
36.1
39.9		 22.90 7.1
9.7
10.4
10.4		 20.6
20.6
20.6
27
5/8 3/8
1/2
3/4		 38.1
38.1
39.9		 24.40 9.7
11.9
12.7		 23.8
23.8
27
3/4 1/2
3/4		 39.90 24.40 11.9
15.7		 27
7/8 3/4 44.70 25.90 15.7 34.9
1 3/4
1		 49.00 31.20 15.7
22.4		 34.9
1 1/4 1 1/4 67.80 41.10 27.7 42.9
1 1/2 1 1/2 78.70 50.00 34 51
2 2 107.20 67.60 46 69.9


Tube OD NPT Size in Dimensions mm
A D E F
3 1/8
1/4		 23.6
24.6		 12.9 2.4 11.1
12.7
4 1/8
1/4		 25.4 13.7 2.4 12.7
6 1/8
1/4
3/8
1/2		 27.0
27.0
29.8
31.8		 15.3 4.8 12.7
12.7
17.5
20.6
8 1/8
1/4
3/8
1/2		 28.8
28.8
30.6
32.6		 16.2 4.8
6.4
6.4
6.4		 14.3
14.3
17.5
20.6
10 1/8
1/4
3/8
1/2		 31.5
31.5
31.5
33.5		 17.2 4.8
7.1
7.9
7.9		 17.5
17.5
17.5
20.6
12 1/4
3/8
1/2
3/4		 36.0
36.0
36.0
39.8		 22.8 7.1
9.5
9.5
9.5		 20.6
20.6
20.6
27
14 1/2 38.0 24.4 11.1 23.8
15 1/2 38.0 24.4 11.9 23.8
16 3/8
1/2
3/4		 38.0
38.0
39.8		 24.4 9.5
11.9
12.7		 23.8
23.8
27
18 1/2
3/4		 39.8 24.4 11.9
15.1		 27
20 1/2
3/4		 44.6 26.0 11.9
15.9		 34.9
22 3/4
1		 44.6 26.0 15.9
18.3		 34.9
25 3/4
1		 49.1 31.3 15.9
21.8		 34.9
30 1 1/4 69.9 39.6 26.2 46
32 1 1/4 72.3 42.0 27.8 46
38 1 1/2 84.0 49.4 33.7 55



elbow_tube_fittings

BSPT Thread

Tube OD in ISO Thread Size in Dimensions m
A D E F
1/8 1/8
1/4		 21.1
24.6		 12.70 2.30 11.1
12.7
1/4 1/8
1/4
3/8
1/2		 26.9
26.9
29.7
31.8		 15.20 4.80 12.7
12.7
17.5
20.6
5/16 1/4 28.70 16.30 6.40 14.3
3/8 1/8
1/4
3/8		 30.5
30.5
31.2		 16.80 7.10 15.9
15.9
17.5
1/2 1/4
3/8
1/2		 36.10 22.90 7.1
9.7
10.4		 20.6
3/4 1/2 39.90 24.40 11.90 34.9
1 1 49.00 31.20 22.40 34.9


Tube OD ISO Thread Size in Dimensions mm
A D E F
3 1/8
1/4		 23.6
24.6		 12.9 2.4 11.1
12.7
4 1/8
1/4		 25.4 13.7 2.4 12.7
6 1/8
1/4
3/8
1/2		 27.0
27.0
29.8
31.8		 15.3 4.8 12.7
12.7
17.5
20.6
8 1/8
1/4
3/8
1/2		 28.8
28.8
30.6
32.6		 16.2 4.8
6.4
6.4
6.4		 14.3
14.3
17.5
20.6
10 1/4
3/8
1/2		 31.5
31.5
33.5		 17.2 7.1
7.9
7.9		 17.5
17.5
20.6
12 1/8
1/4
3/8
1/2
3/4		 36.0
36.0
36.0
36.0
39.8		 22.8 4.8
7.1
9.5
9.5
9.5		 20.6
20.6
20.6
20.6
27
14 1/2 38.1 24.4 11.1 23.8
15 1/2 38.1 24.4 11.9 23.8
16 3/8
1/2		 38.0 24.4 9.5
11.9		 23.8
18 1/2
3/4		 39.8 24.4 11.9
15.1		 27
20 1/2
3/4		 44.6 26.0 11.9
15.9		 34.9
22 3/4
1		 44.6 26.0 15.9
18.3		 34.9
25 3/4
1		 49.1 31.3 15.9
21.8		 34.9
28 1 64.0 36.6 21.8 41
1 55.4 31.6 22.2 42.9
45 deg. Male Elbow
connector_tube_fittings

NPT

Tube OD in NPT Size in Dimensions mm
A D E F
1/4 1/8
1/4		 24.60 15.20 4.80 12.7
3/8 1/8
1/4
3/8		 27.9
27.9
29.2		 16.80 4.8
7.1
7.1		 15.9
15.9
20.6
1/2 3/8
1/2		 32.00 22.90 9.7
10.4		 20.6
3/4 3/4 33.80 24.40 15.70 27
1 1 40.40 31.20 22.40 34.9

Positionable Male Elbow
elbow_tube_fittings

BSPP Thread

Tube OD in ISO Thread Size in. Dimensions mm
A D E F Fx U
1/4 1/8
1/4		 26.9
29		 15.20 4.1
4.8		 12.7
15.9		 14.3
19.1		 15.2
20.3
3/8 1/4
3/8		 30.5
33.3		 16.80 5.8
7.1		 15.9
20.6		 19.1
22.2		 20.3
24.4
1/2 1/4
3/8
1/2		 36.1
36.1
38.1		 22.90 5.8
7.9
10.4		 20.6
20.6
23.8		 19.1
22.2
27		 20.3
24.4
29.5
5/8 1/2 38.10 24.40 11.90 23.8 27 29.50
3/4 1/2
3/4		 39.90 24.40 11.9
15.7		 27 27
34.9		 29.5
36.6
1 3/4
1		 49.00 31.20 15.7
19.8		 34.9 34.9
41.3		 36.3
46.2


Tube OD ISO Thread Size in. Dimensions mm
A D E F Fx U
6 1/8
1/4		 27.0
29.0		 15.3 4.0
4.8		 12.7
15.9		 14.3
19.1		 15.2
20.3
8 1/8
1/4		 28.8
29.9		 16.2 4.0
5.9		 14.3
15.9		 14.3
19.1		 15.2
20.3
10 1/4
3/8		 33.5 17.2 5.9
7.9		 20.6 19.1
22.2		 20.3
24.4
12 1/4
3/8
1/2
3/4		 36.0
36.0
38.0
39.8		 22.8 5.9
7.9
9.5
9.5		 20.6
20.6
23.8
27		 19.1
22.2
27
34.9		 20.3
24.4
29.5
36.3

elbow_tube_fittings

Straight Thread

Tube OD in SAE/MS Thread Size in Dimensions mm
A D E F Fx U
1/4 7/16-20
9/16-18		 28.4
30.5		 15.20 4.80 12.7
15.9		 14.3
17.5		 16.5
20.1
5/16 1/2-20 30.20 16.30 5.80 14.3 15.9 18.30
3/8 7/16-20
9/16-18
3/4-16		 32
32
34.8		 16.80 5.1
7.1
7.1		 15.9
15.9
20.6		 14.3
17.5
22.2		 16.5
20.1
25.7
1/2 9/16-18
3/4-16		 37.60 22.90 7.1
10.4		 20.6 17.5
22.2		 20.1
25.7
5/8 7/8-14 39.60 24.40 12.70 23.8 25.4 29.50
3/4 1 1/16-12 41.40 24.40 15.70 27 31.8 36.60
7/8 1 3/16-12 43.20 25.90 18.30 30.2 34.9 40.40
1 1 5/16-12 50.50 31.20 22.40 34.9 38.1 43.90
1 1/4 1 5/8-12 67.80 41.10 27.70 42.9 47.6 54.90
1 1/2 1 7/8-12 78.00 50.00 34.00 51 54 62.20
2 2 1/2-12 107.20 67.60 46.00 69.9 69.9 80.30




Female Elbow
elbow_tube_fittings

NPT

Tube OD in NPT  Size in Dimensions mm
A D E F
1/8 1/8
1/4		 24.6
27.4		 12.70 2.30 12.7
17.5
3/16 1/8 25.40 13.70 3.00 12.7
1/4 1/8
1/4
3/8
1/2		 26.9
29.7
31.8
34.5		 15.20 4.80 12.7
17.5
20.6
25.4
5/16 1/8
1/4		 28.7
30.5		 16.30 6.40 14.3
17.5
3/8 1/8
1/4
3/8
1/2		 30.5
31.2
33.3
36.1		 16.80 7.10 15.9
17.5
20.6
25.4
1/2 1/4
3/8
1/2		 36.1
36.1
38.9		 22.90 10.40 20.6
20.6
25.4
5/8 3/8
1/2		 38.1
39.9		 24.40 12.70 23.8
27
3/4 1/2
3/4		 39.9
44.7		 24.40 15.70 27
34.9
7/8 3/4 44.70 25.90 18.30 34.9
1 3/4
1		 49
53.6		 31.20 22.40 34.9
42.9

Tube OD NPT  Size in Dimensions mm
A D E F
6 1/8
1/4
1/2		 27.0
29.8
34.6		 15.3 4.8 12.7
17.5
25.4
8 1/4 30.6 16.2 6.4 17.5
10 1/8
1/4		 31.5
33.5		 17.2 7.9 17.5
20.6
12 1/4
1/2		 36.0
38.8		 22.8 9.5 20.6
25.4
16 1/2 39.5 24.4 12.7 27

Tube Weld Elbow
elbow_tube_fittings

Socket Weld

Tube OD in Socket Weld Size in Dimensions mm
A B D E F K
1/4 1/4 26.90 7.10 15.20 4.80 12.7 12.70
3/8 3/8 30.50 7.90 16.80 7.10 15.9 16.00
1/2 1/2 36.10 9.70 22.90 10.40 20.6 20.60
3/4 3/4 39.90 11.20 24.40 15.70 27 26.90
1 1 49.00 15.70 31.20 22.40 34.9 35.10


elbow_tube_fittings

Buttweld

Tube OD in Pipe Weld Size in Dimensions mm
A D E F J
1/4 1/8
1/4		 26.90 15.20 4.80 12.7 10.3
13.7
3/8 1/4 30.50 16.80 7.10 15.9 13.7
1/2 1/2 36.10 22.90 10.40 20.6 21.3
3/4 3/4 39.90 24.40 15.70 27 26.7
