Others Pipe Fittings

others_pipe_fittings
Pipe Cap
Hex Nipple

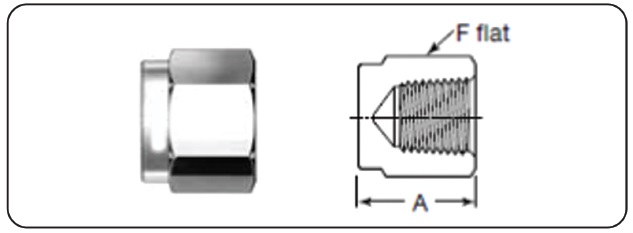

Pipe Cap

NPT Size in. Dimensions mm
A F
1/8 19.1 14.3
1/4 23.1 19.1
3/8 26.2 22.2
1/2 34 27
3/4 36.6 33.3
1 41.1 41.3
Heavy-Wall Female NPT
1/4 28.2 25
1/2 40.1 38.1

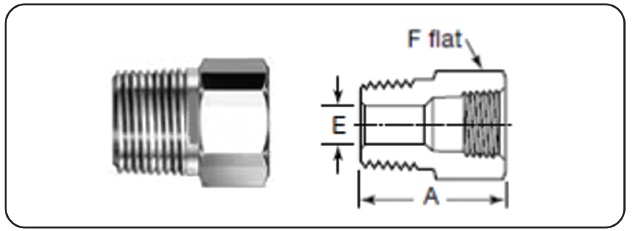

Reducing Bushing
Hex Nipple

Male to Female NPT

Male NPT Size in. Female NPT Size in. Dimensions mm
A E F
1/8 1/16 26.2 4.8 11.1
1/4 1/8 26.9 7.1 14.3
3/8 1/8 21.8 8.6 17.5
1/4 30.2 9.6 19.1
1/2 1/8 27.4 8.6 22.2
1/4 11.4
3/8 35.8 11.9
3/4 1/4 27.4 11.4 27
3/8 15
1/2 41.4 15.7
1 1/4 34.8 11.4 34.9
3/8 15
1/2 18.5
3/4 47 22.4



Male to Female ISO Tapered thread (RT)

Male ISO Thread Size in. Female ISO Thread Size in. Dimensions mm
A E F
1/4 1/8 26.9 7.1 14.3
3/8 1/4 30.2 9.6 19.1
1/2 1/4 27.4 11.2 22.2
3/8 35.8 11.9

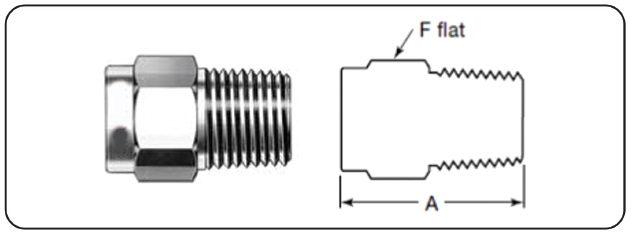

Pipe Plug
Hex Nipple

Male NPT

NPT Size in. Dimensions mm
A F
1/16 19.1 7.9
1/8 19.1 11.1
1/4 24.4 14.3
3/8 25.1 17.5
1/2 30.7 22.2
3/4 30.7 27
1 38.1 34.9

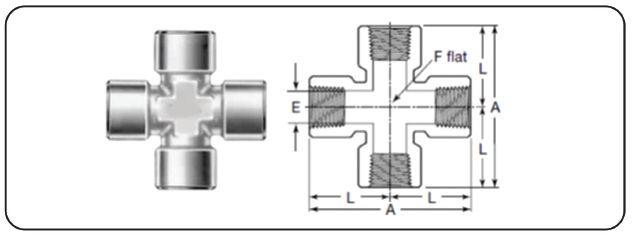

Female Cross
Hex Nipple

Female NPT

NPT Size in. Dimensions mm
A E L F
1/8 52.8 8.6 26.4 12.7
1/4 59.4 11.4 29.7 17.5
3/8 72.1 15 36.1 20.6
1/2 79.2 18.5 39.6 25
3/4 97.5 23.9 48.8 31.8
1 97 29.7 48.5 42.9
