A??gauge valve is a single shutoff needle??valve, that isolates the??pressure gauge??from the process. The??gauge??attaches to one port and the block??valve??isolates the entire block from the process and the bleed??valve??vents the??gauge??to the vent port, for testing or calibration.
They are available in different design configuration such as below:

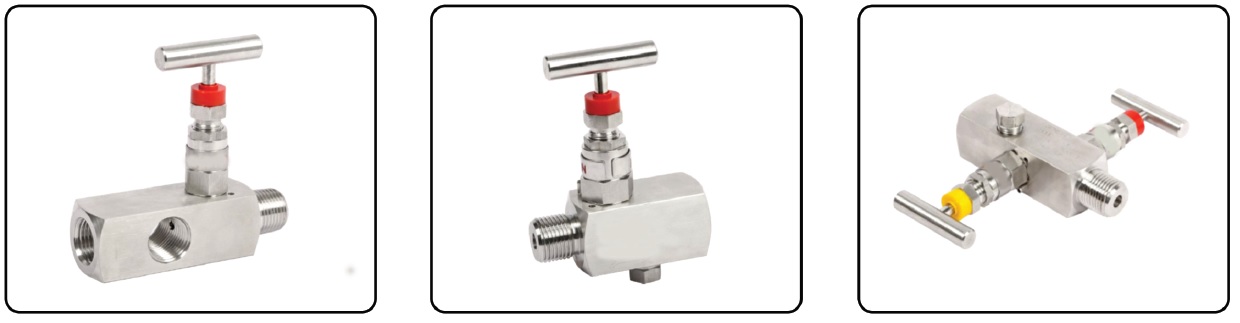

Multi Port Gauge Valve Single Block & Bleed Gauge Valve Double Block & Bleed Gauge Valve
Material can be SS316, SS304, Monel, Hastelloy and others. Complete Material traceability to its Material test report is available. All wetted parts can be offered as per NACE MR-01-75 Design Pressure: 410 barg / 6000 psi & Temperature: -50??C to 450??C Standard PTFE Packing / Graphite (for temp above 200??C) Finishing - CS Zinc Plated / SS. Body can be forged, bar stock, straight type, are available. Designed & Assembled to perfection to operate at much lower torque values. Sizes are from 1/2" and 3/4" male, 1/2" Female end connection and gauge port. Available with NACE MR 01 75 standard, Oxygen service and fugitive emission application.
Instrument Isolation |
---|
Plant Utility line |
Hydraulic and Pneumatic line |
Pressure measurement devices |
Vent Line |
Oil & Gas Industry |
|
---|---|
Process Industry | |
Power Industry | |
Refinery & Petrochemical Industry | |
Chemical Industry |
A gauge valve valve is typically a single shutoff needle valve, that isolates the gauge from the process. ... The gauge attaches to one port, the block valve isolates (shuts off) the entire 'block' from the process and the bleed valve vents the gauge to the vent port, for testing or calibration.
We are the leading Manufacturer / Exporter / Supplier of Gauge Valves in India and Overseas.
