Needle Valves
ISO Certificate 9001:2015

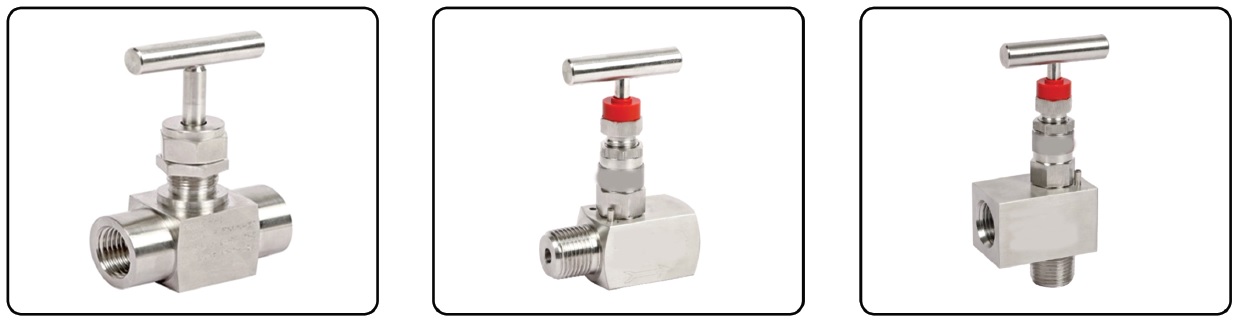

Needle ValvesNeedle valves are designed in integral bonnet and screwed bonnet in a compact way to accommodate in very small space.
There are available in different configuration of end connections as given below.
Integral bonnet and Screwed Ends
Integral bonnet and Double Ferrule ends
Screwed Bonnet design female ends
Screwed Bonnet design Male x female ends
Screwed bonnet double ferrule ends
Screwed bonnet angle type
Important Features of Needle Valves
Material can be A105, SS304, SS316, Monel, Hastelloy and others. Complete Material traceability to its Material test report is available.
It is used for isolation, throttling, sampling etc. It can be used with pipe and tube with matching end connections.
Design Pressure: 410 barg / 6000 psi & Temperature: -50??C to 450??C
Standard PTFE Packing / Graphite (for temp above 200??C)
Finishing - CS Zinc Plated / SS.
Body can be forged, bar stock, straight type, angle type and also panel mounted designs are available.
Designed & Assembled to perfection to operate at much lower torque values.
Sizes are from 1/4" to 1" and M20 configuration.
Cv of the valve : 0.35 to 1.8 gpm
Orifice size: 4, 6.4 & 9.5 mm
Application| Instrument Isolation |
|---|
| Plant Utility line |
| Hydraulic and Pneumatic line |
| Pressure measurement devices |
| Drain and Vent line |
Industries| Oil & Gas Industry |
|
|---|---|
| Process Industry | |
| Power Industry | |
| Refinery & Petrochemical Industry | |
| Chemical Industry |
Product Enquiry
Needle valves are commonly used to control flow and protect delicate gauges from damage caused by sudden pressure surges of liquids and gases. They're ideal for systems using lighter and less viscous materials with low flow rates. Needle valves, sometimes referred to as plunger valves, are regulating valves and enable engineers to finely control and regulate water flow and pressure.
We are the leading Manufacturer / Exporter / Supplier of Needle Valves in India and Overseas.
