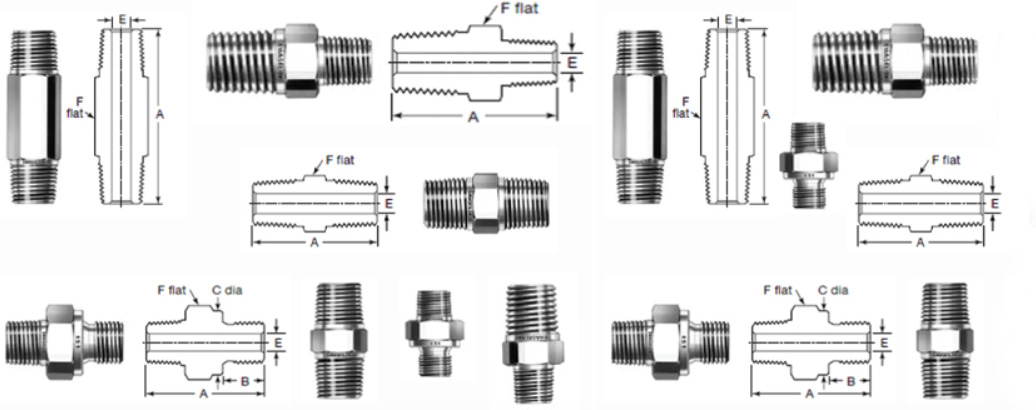

Pipe Nipple
ISO Certificate 9001:2015

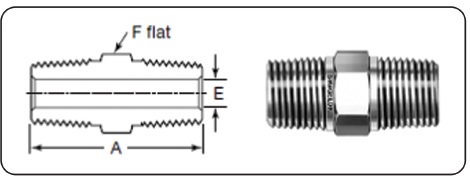

Hex Nipple
| NPT Size in. | Dimensions mm | ||
| A | E | F | |
| 1/16 | 25.6 | 3 | 7.9 |
| 1/8 | 25.6 | 4.8 | 11.1 |
| 1/4 | 35.6 | 7.1 | 14.3 |
| 3/8 | 36.3 | 9.6 | 17.5 |
| 1/2 | 46.7 | 11.9 | 22.2 |
| 3/4 | 46.7 | 15.7 | 27 |
| 1 | 58.9 | 22.4 | 34.9 |
| Heavy-Wall Male NPT | |||
| 1/4 | 35.6 | 5.8 | 14.3 |
| 1/2 | 46.7 | 9.9 | 22.2 |
| ISO Thread Size in. | Dimensions mm | ||
| A | E | F | |
| 1/8 | 25.6 | 4.8 | 11.1 |
| 1/4 | 35.6 | 7.1 | 14.3 |
| 3/8 | 36.3 | 9.6 | 17.5 |
| 1/2 | 46.7 | 11.9 | 22.2 |
| NPT Size in. | ISO Thread Size in. | Dimensions mm | ||
| A | E | F | ||
| 1/8 | 1/8 | 25.6 | 4.8 | 11.1 |
| 1/4 | 1/4 | 35.6 | 7.1 | 14.3 |
| 3/8 | 3/8 | 36.3 | 9.6 | 17.5 |
| 1/2 | 1/2 | 46.7 | 11.9 | 22.2 |
| 3/4 | 3/4 | 46.7 | 15.7 | 27 |
| 1 | 1 | 58.9 | 22.4 | 34.9 |

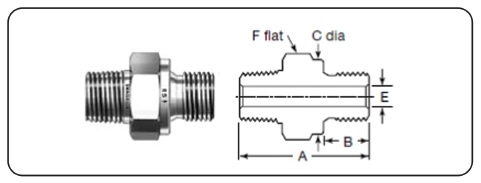

| NPT Size in. | ISO Thread Size in. | Dimensions mm | ||||
| A | B | C | E | F | ||
| 1/8 | 1/8 | 27.7 | 8.1 | 13.7 | 4.1 | 14.3 |
| 1/4 | 1/4 | 36.8 | 11.9 | 17.8 | 5.8 | 19.1 |
| 3/8 | 3/8 | 37.6 | 11.9 | 21.8 | 7.9 | 22.2 |
| 1/2 | 1/2 | 44.4 | 14 | 25.9 | 11.9 | 27 |
| 3/4 | 3/4 | 49 | 16 | 31.8 | 15.7 | 33.3 |
| 1 | 1 | 56.6 | 18 | 38.9 | 19.8 | 41.3 |

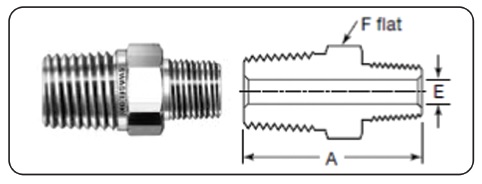

Hex Reducing Nipple
| NPT Inlet Size in. | NPT Outlet Size in. | Dimensions mm | ||
| A | E | F | ||
| 1/8 | 1/16 | 25.6 | 3 | 11.1 |
| 1/4 | 1/8 | 31 | 4.8 | 14.3 |
| 3/8 | 1/8 | 31.8 | 4.8 | 17.5 |
| 3/8 | 1/4 | 36.3 | 7.1 | 17.5 |
| 1/2 | 1/8 | 37.3 | 4.8 | 22.2 |
| 1/2 | 1/4 | 41.9 | 7.1 | 22.2 |
| 1/2 | 3/8 | 41.9 | 9.6 | 22.2 |
| 3/4 | 1/4 | 41.9 | 7.1 | 27 |
| 3/4 | 1/2 | 46.7 | 11.9 | 27 |
| 1 | 1/4 | 49.3 | 7.1 | 34.9 |
| 1 | 1/2 | 54.1 | 11.9 | 34.9 |
| 1 | 3/4 | 54.1 | 15.7 | 34.9 |
| Heavy-Wall Male NPT | ||||
| 1/2 | 1/4 | 41.9 | 5.8 | 22.2 |
| NPT Inlet Size in. | NPT Outlet Size in. | Dimensions mm | ||
| A | E | F | ||
| 3/8 | 1/4 | 36.3 | 7.1 | 17.5 |
| 1/2 | 1/8 | 37.3 | 4.8 | 22.2 |
| 1/2 | 3/8 | 41.9 | 9.3 | 22.2 |
Hex Long Nipple
| NPT Size in. | Dimensions mm | ||
| A | E | F | |
| 1/8 |
38.1 50.8 63.5 76.2 |
4.8 | 11.1 |
| 1/4 |
38.1 50.8 63.5 76.2 101.6 |
7.1 | 14.3 |
| 3/8 |
38.1 50.8 63.5 76.2 101.6 |
9.6 | 17.5 |
| 1/2 |
50.8 76.2 101.6 152.4 |
11.9 | 22.2 |
| 3/4 |
50.8 76.2 101.6 |
15.7 | 27 |
| 1 |
76.2 101.6 |
22.4 | 34.9 |
