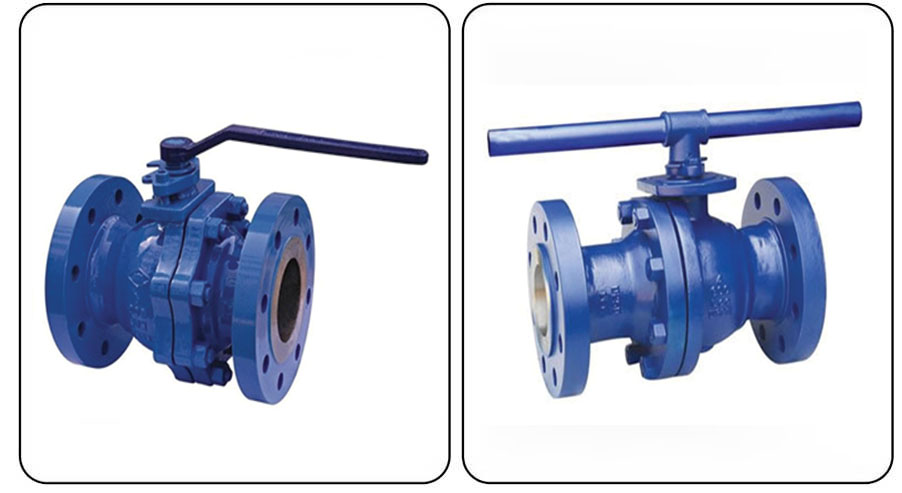

Floating Ball Valve
ISO Certificate 9001:2015
Product Specifications| Product Type |
Floating Ball Valve Full Bore / Reduced Boree Cast / Forgee 2Pc / 3Pc Designe Soft Seated / Metal Seatede |
|---|---|
| Valve Size | ½" to 6" |
| Pressure Class | 150, 300, 600, 800, 900, 1500, 2500 |
| Ends | RF, RTJ, BWE, SW, NPT |
| Operation | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electrical) |
| Materials | Carbon Steel, Stainless Steel, Alloy Steel, DSS & SDSS |
| Design Features |
Anti-Static Design Anti-Blow out Stem Cavity Pressure Relief Feature Body Drain Connections* Lever Locking Device* |
In a floating ball valve, the ball is held in the position by the compression of the two elastomeric seats against the ball. The ball is free to float inside the valve body. ... This type of valve design is capable of bi-directional shut-off. The floating valve is very difficult to operate when upstream pressure is high.
Applicable Standards| Design Standard | API 6D, API 608, ISO 17292 |
|---|---|
| P-T Rating | ASME B16.34 |
| Face to Face | API 6D, ASME B16.10 |
| End Connections | ASME B16.5, ASME B16.25, ASME B16.11, ASME B1.20.1 |
| Testing | API 6D, API 598 |
| Fire Safe | API 607, API 6FA, ISO 10497 |
| NACE Requirement* | NACE MR-01-75, NACE MR-01-03 |
| FET Testing* | ISO 15848 |
| Cryo Test* | BS 6364 |
* On request.
Industries| Oil & Gas Industry |
|
|---|---|
| Pipeline & Process Industry | |
| Power Industry | |
| Refinery & Petrochemical Industry | |
| Chemical Industry |
Product Enquiry
Stem extension can be provided upon customer requirement.
ISO 5211 top mounting plate for direct mounting of a wide range of actuators and gears.
We are the leading Manufacturer / Exporter / Supplier of Floating Ball Valve in India and Overseas.
