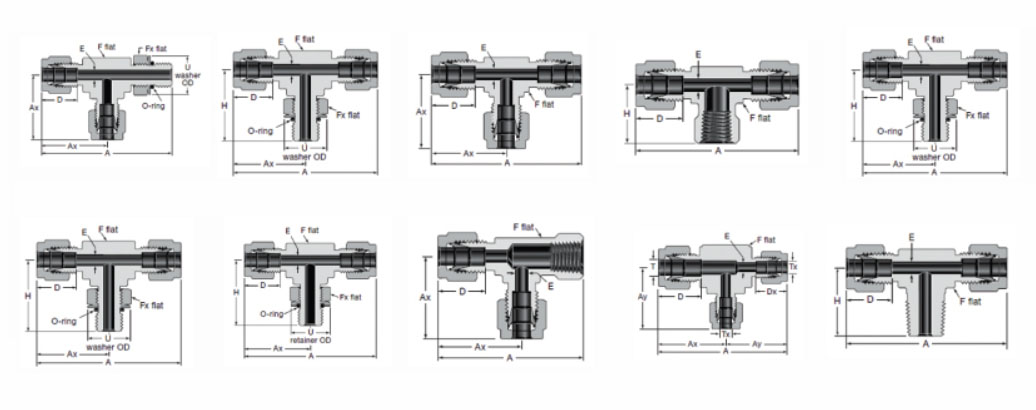

Tee Tube Fittings

tee_tube_fittings
Union Tee
tee_tube_fittings
Tube OD in Dimensions mm
A Ax D E F
1/16 35.60 17.80 8.60 1.30 9.5
1/8 44.70 22.40 12.70 2.30 9.5
3/16 48.80 24.40 13.70 3.00 11.1
1/4 53.80 26.90 15.20 4.80 12.7
5/16 59.40 29.70 16.30 6.40 15.9
3/8 61.00 30.50 16.80 7.10 15.9
1/2 72.10 36.10 22.90 10.40 20.6
5/8 77.70 38.90 24.40 12.70 25
3/4 79.80 39.90 24.40 15.70 27
7/8 89.40 44.70 25.90 18.30 34.9
1 98.00 49.00 31.20 22.40 34.9
1 1/8 110.20 55.10 31.20 24.60 42.9
1 1/4 135.60 67.80 41.10 27.70 42.9
1 1/2 157.50 78.70 50.00 34.00 51
2 214.40 107.20 67.60 46.00 69.9


Tube OD Dimensions mm
A Ax D E F
2 44.7 22.3 12.9 1.7 9.5
3 44.7 22.3 12.9 2.4 9.5
4 50.8 25.4 13.7 2.4 12.7
6 53.9 27.0 15.3 4.8 12.7
8 59.7 29.9 16.2 6.4 15.9
10 63.0 31.5 17.2 7.9 17.5
12 72.0 36.0 22.8 9.5 20.6
14 77.6 38.8 24.4 11.1 25.4
15 77.6 38.8 24.4 11.9 25.4
16 77.6 38.8 24.4 12.7 25.4
18 79.6 39.8 24.4 15.1 27
20 89.3 44.6 26.0 15.9 34.6
22 89.3 44.6 26.0 18.3 34.6
25 98.3 49.1 31.3 21.8 34.9
28 128 64.0 36.6 21.8 41
103 51.4 31.6 24.6 42.9
30 140 69.9 39.6 26.2 46
32 145 72.3 42.0 28.6 46
38 168 84.0 49.4 33.7 55
50 211 106 65.0 45.2 69.9

Male Run Tee
tee_tube_fittings

NPT

Tube OD in NPT Size in. Dimensions mm
A Ax D E F
1/8 1/8
1/4		 41.4
48		 23.6
24.6		 12.70 2.30 11.1
12.7
3/16 1/8 42.20 24.40 13.70 3.00 11.1
1/4 1/8
1/4		 45.7
50.3		 26.90 15.20 4.80 12.7
5/16 1/8 50.50 29.70 16.30 4.80 15.9
3/8 1/4
3/8		 55.9
61.5		 30.5
33.3		 16.80 7.10 15.9
20.6
1/2 3/8
1/2		 64.3
69.9		 36.10 22.90 9.7
10.4		 20.6
5/8 1/2 73.20 38.10 24.40 11.90 23.8
3/4 3/4 76.70 39.90 24.40 15.70 27


Tube OD NPT Size in. Dimensions mm
A Ax D E F
6 1/8
1/4		 45.8
50.3		 27.0 15.3 4.8 12.7
8 1/4 55.3 29.9 16.2 6.4 15.9
12 1/4
1/2		 64.2
69.0		 36.0 22.8 7.1
9.5		 20.6
16 1/2 73.1 38.0 24.4 11.9 23.8
Positionable Male Run Tee
tee_tube_fittings

Straight Thread

Tube OD in SAE/MS Thread Size in Dimensions mm
A Ax D E F Fx U
1/4 7/16-20 56.90 28.40 15.20 4.80 12.7 14.3 16.50
3/8 9/16-18 64.30 32.00 16.80 7.10 15.9 17.5 20.10
1/2 3/4-16 75.40 37.60 22.90 10.40 20.6 22.2 25.70
3/4 1 1/16-12 90.20 41.40 24.40 15.70 27 31.8 36.60
1 1 5/16-12 104.10 50.50 31.20 22.40 34.9 38.1 43.90
1 1/4 1 5/8-12 126.00 67.80 41.10 27.70 42.9 47.6 54.90
1 1/2 1 7/8-12 138.40 78.00 50.00 34.00 51 54 62.20
2 2 1/2-12 178.80 107.20 67.60 46.00 69.9 69.9 80.30


tee_tube_fittings

BSPP

Tube OD in ISO Thread Size in. Dimensions mm
A Ax D E F Fx U
1/4 1/8
1/4		 53.3
61.2		 26.9
29		 15.20 4.1
4.8		 12.7
15.9		 14.3
19.1		 15.2
20.3
3/8 1/4 62.70 30.50 16.80 5.80 15.9 19.1 20.30
1/2 3/8
1/2		 73.2
81.5		 36.1
38.1		 22.90 7.9
10.4		 20.6
23.8		 22.2
27		 24.4
29.5
5/8 1/2 81.50 38.10 24.40 11.90 23.8 27 29.50
3/4 3/4
1/2		 8.6
85.1		 39.90 24.40 15.7
11.9		 27 34.9
27		 36.3
29.5
1 1 102.60 49.00 31.20 19.80 34.9 41.3 46.20

Tube OD ISO Thread Size in. Dimensions mm
A Ax D E F Fx U
6 1/8
1/4		 53.4
61.2		 27.0
29.0		 15.3 4.0
4.8		 12.7
15.9		 14.3
19.1		 15.2
20.3
8 1/8
1/4		 56.3
62.1		 28.8
29.9		 16.2 4.0
6.4		 14.3
15.9		 14.3
19.1		 15.2
20.3
10 1/4 68.6 33.5 17.2 5.9 20.3 19.1 20.3
12 3/8
1/2		 73.1
81.5		 36.0
38.0		 22.8 7.9
9.5		 20.6
23.8		 22.2
27		 24.4
29.5
Positionable Branch Tee
tee_tube_fittings

Straight Thread

Tube OD in SAE/MS Thread Size in Dimensions mm
A Ax D E F Fx H U
1/4 7/16-20 56.90 28.40 15.20 4.80 12  7/10 14  3/10 28.40 16.50
3/8 9/16-18 64.00 32.00 16.80 7.10 15  9/10 17  1/2 32.30 20.10
1/2 3/4-16 75.20 37.60 22.90 10.40 20  3/5 22  1/5 37.80 25.70
3/4 1 1/16-12 82.80 41.40 24.40 15.70 27      69  9/10 48.80 36.60
1 1 5/16-12 101.10 50.50 31.20 22.40 34  9/10 38  1/10 53.60 43.90
1 1/4 1 5/8-12 135.60 67.80 41.10 27.70 42  9/10 47  3/5 58.20 54.90
1 1/2 1 7/8-12 156.00 78.00 50.00 34.00 50  4/5 54      62.20 62.20
2 2 1/2-12 214.40 107.20 67.60 46.00 69  9/10 69  9/10 70.40 80.30

tee_tube_fittings

BSPP

Tube OD in ISO Thread Size in. Dimensions mm
A Ax D E F Fx H U
1/4 1/8
1/4		 53.8
57.9		 26.9
29		 15.20 4.1
4.8		 12.7
15.9		 14.3
19.1		 26.4
32.3		 15.2
20.3
3/8 1/4 61.00 30.50 16.80 5.80 15.9 19.1 32.30 20.30
1/2 3/8
1/2		 72.1
76.2		 36.1
38.1		 22.90 7.9
10.4		 20.6
23.8		 22.2
27		 37.1
43.4		 24.4
29.5
5/8 1/2 76.20 38.10 24.40 11.90 23.8 27 43.40 29.50
3/4 3/4
1/2		 79.80 39.90 24.40 15.7
11.9		 27 34.9
27		 48.8
45.2		 36.3
29.5
1 1 98.00 49.00 31.20 19.80 34.9 41.3 53.60 48.80

Tube OD ISO Thread Size in. Dimensions mm
A Ax D E F Fx H U
6 1/8
1/4		 53.9
58.0		 27.0
29.0		 15.3 4.0
4.8		 12.7
15.9		 14.3
19.1		 26.4
32.2		 15.2
20.3
8 1/8
1/4		 57.7
59.7		 30.0 16.2 4.0
5.9		 14.3
15.9		 14.3
19.1		 28.4
32.3		 15.2
20.3
10 1/4 67.0 33.5 17.2 5.9 20.6 19.1 35.1 20.3
12 3/8
1/2		 72.0
76.1		 36.1
38.1		 22.8 7.9
9.5		 20.6
23.8		 22.2
27		 37.1
43.4		 24.4
29.5

Female Run Tee
tee_tube_fittings

NPT

Tube OD in NPT Size in. Dimensions mm
A Ax D E F
1/8 1/8 43.70 24.60 12.70 2.30 12.7
1/4 1/8
1/4		 46
52.1		 26.9
29.7		 15.20 4.80 12.7
17.5
3/8 1/4 53.60 31.20 16.80 7.10 17.5
1/2 3/8
1/2		 58.4
68.3		 36.1
39.9		 22.90 10.40 20.6
27
3/4 3/4 76.50 44.70 24.40 15.70 34.9
1 3/4
1		 80.8
91.7		 49
53.6		 31.20 22.40 34.9
42.9



Tube OD NPT Size in. Dimensions mm
A Ax D E F
6 1/8
1/4		 46.0
52.1		 27.0
29.8		 15.3 4.8 12.7
17.5
8 1/8
1/4		 48.9
53.0		 29.9
30.6		 16.2 6.4 15.9
17.5
10 1/4 55.9 33.5 17.2 7.9 20.6
12 1/4
3/8
1/2		 58.4
58.4
68.3		 36.0
36.0
39.8		 22.8 9.5
10.3
9.5		 20.6
20.6
27
16 1/2 68.2 39.8 24.4 12.7 27

Female Branch Tee
elbow_tube_fittings

NPT

Tube OD in NPT Size in. Dimensions mm
A D E F H
1/8 1/8 49.30 12.70 2.30 12.7 19.10
1/4 1/8
1/4		 53.8
59.4		 15.20 4.80 12.7
17.5		 19.1
22.1
3/8 1/4
3/8
1/2		 62.5
66.5
72.1		 16.80 7.10 17.5
20.6
25.4		 22.4
22.4
28.4
1/2 1/4
3/8
1/2		 72.1
72.1
77.7		 22.90 10.40 20.6
20.6
25.4		 22.4
22.4
28.4
5/8 1/2 77.70 24.40 12.70 25 28.40
3/4 3/4 89.40 24.40 15.70 34.9 31.80
1 3/4
1		 98
107.2		 31.20 22.40 34.9
42.9		 31.8
38.1


Tube OD NPT Size in. Dimensions mm
A D E F H
6 1/8
1/4		 53.9
59.5		 15.3 4.8 12.7
17.5		 19.0
22.4
8 1/8
1/4		 59.7
61.2		 16.2 6.4 15.9
17.5		 19.0
22.4
10 1/4 67.0 17.2 7.9 20.6 22.4
12 1/4
3/8
1/2		 72.0
72.0
77.7		 22.8 9.5 20.6
20.6
25.4		 22.4
22.4
28.4
16 1/2 77.6 24.4 12.7 25 28.4
Reducing Union Tee
tee_tube_fittings
Tube OD in Dimensions mm
T Tx A Ax D Dx E F
3/8 1/4 61.00 29.00 16.80 15.20 4.80 15.9
1/2 1/4
3/8		 72.10 31.8
33.3		 22.90 15.2
16.8		 4.8
7.1		 20.6
5/8 3/8 77.70 36.10 24.40 16.80 7.10 25
3/4 3/8
1/2		 79.80 37.1
39.9		 24.40 16.8
22.9		 7.1
10.4		 27
1 3/8
1/2
3/4		 98.00 41.9
44.7
44.7		 31.20 16.8
22.9
24.4		 7.1
10.4
15.7		 34.9
1 1/4 1 135.60 55.10 41.10 31.20 22.40 42.9
1 1/2 1 157.50 59.90 50.00 31.20 22.40 51
2 1 214.40 70.90 67.60 31.20 22.40 69.9



Tube OD Dimensions mm
T Tx A Ax D Dx E F
3 6 49.3 26.9 12.9 15.3 2.4 12.7
8 59.9 29.0 16.2 15.3 4.8 15.9
10 63.0 29.7 17.2 15.3 4.8 17.5
12 72.0 31.8 22.8 15.3 4.8 20.6
15 12 77.7 38.9 24.4 22.8 9.5 25
16 77.6 38.9 24.4 22.8 9.5 25
18 79.8 39.9 24.4 22.8 9.5 27
22 89.4 44.7 26.0 22.8 9.5 34.9
25 98.0 44.7 31.3 22.8 9.5 34.9

tee_tube_fittings
Tube OD in Dimensions mm
T Tx A Ax Ay D Dx E F
3/8 1/4 59.40 30.50 29.00 16.80 15.20 4.80 15.90
tee_tube_fittings
Tube OD in Dimensions mm
T Tx A Ax Ay D Dx E F
1/2 3/8 69.30 36.10 33.30 22.90 16.80 7.10 20.6
5/8 74.90 38.90 36.10 24.40 16.80 7.10 25
3/4 77.00 39.90 37.10 24.40 16.80 7.10 27



tee_tube_fittings



Tube OD in Dimensions mm
T Tx Tx1 A Ax Ay Ay1 D Dx Dx1 E F
5/8 1/2 3/8 77.70 38.90 38.90 36.10 24.40 22.90 16.80 7.10 25
3/4 1/2 79.80 39.90 39.90 37.10 24.40 22.90 27
1 3/4 93.70 49.00 44.70 41.90 31.20 24.40 34.9

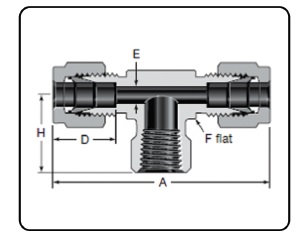

Male Branch tee
elbow_tube_fittings

NPT

Tube OD in NPT Size in. Dimensions mm
A D E F H
1/8 1/8
1/4		 47.2
49.3		 12.70 2.30 11.1
12.7		 17.8
23.4
3/16 1/8 48.80 13.70 3.00 11.1 17.80
1/4 1/8
1/4		 53.80 15.20 4.80 12.7 18.8
23.4
5/16 1/8 59.40 16.30 4.80 15.9 20.80
3/8 1/4
3/8		 61
66.5		 16.80 7.10 15.9
20.6		 25.4
28.2
1/2 3/8
1/2		 72.10 22.90 9.7
10.4		 20.6 28.2
33
5/8 1/2 77.70 24.40 11.90 25 35.80
3/4 3/4 79.80 24.40 15.70 27 36.80


Tube OD NPT Size in. Dimensions mm
A D E F H
6 1/8
1/4		 53.9 15.3 4.8 12.7 18.8
23.4
8 1/8
1/4		 59.7 16.2 4.8
6.4		 15.9 20.8
25.4
10 1/4 67.0 17.2 7.1 20.6 26.2
12 3/8
1/4
1/2		 72.0 22.8 9.5
7.1
9.5		 20.6 28.2
28.2
33.0
16 1/2 77.6 24.4 11.9 25 35.8



Industries
Oil & Gas Industry
Gate Valve Indutries
Process Industry
Power Industry
Refinery & Petrochemical Industry
Chemical Industry
Product Enquiry

Product Enquiry Form

Tee Tube Fittings

We are the leading Manufacturer / Exporter / Supplier of All kind of Tee Tube Fittings like Union Tee, Positionable Male Run Tee, Positionable Branch Tee, Female Run Tee, Female Branch Tee, Reducing Union Tee, Male Branch tee etc in India and Overseas.
