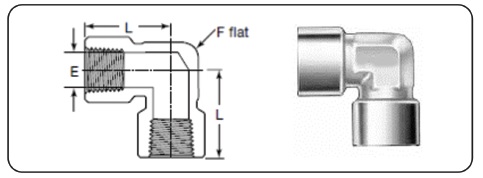

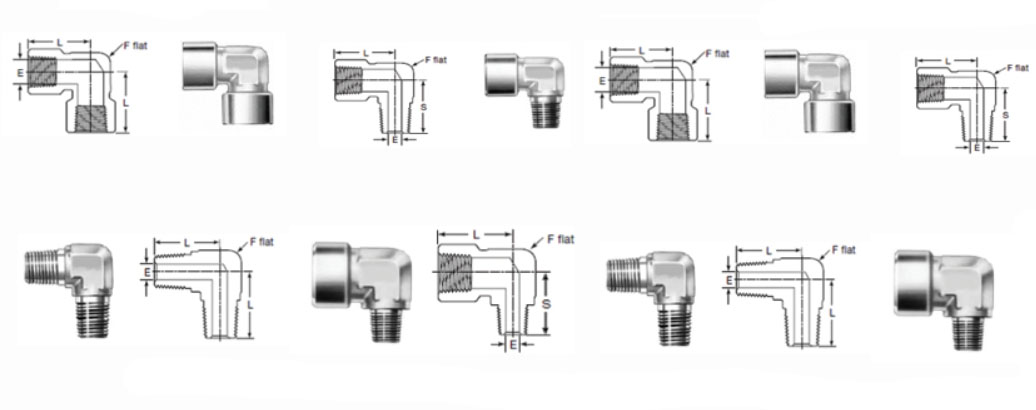

Female Elbow
| NPT Size in. | Dimensions mm | ||
| E | L | F | |
| 1/8 | 8.6 | 26.4 | 12.7 |
| 1/4 | 11.4 | 29.7 | 17.5 |
| 3/8 | 15 | 36.1 | 20.6 |
| 1/2 | 18.5 | 39.6 | 25 |
| 3/4 | 23.9 | 48.8 | 31.8 |
| 1 | 29.7 | 48.5 | 42.9 |
| Heavy-Wall Female NPT | |||
| 1/4 | 11.4 | 39.6 | 25 |
| 1/2 | 18.5 | 50 | 42.9 |
| ISO Thread Size in. | Dimensions mm | ||
| E | L | F | |
| 1/4 | 11.2 | 29.7 | 17.5 |
| 3/8 | 14.7 | 36.1 | 20.6 |
| 1/2 | 18.3 | 39.6 | 25.4 |
Male Elbow
| NPT Size in. | Dimensions mm | ||
| E | L | F | |
| 1/8 | 4.8 | 22.4 | 11.1 |
| 1/4 | 7.1 | 26.7 | 12.7 |
| 3/8 | 9.6 | 29.7 | 17.5 |
| 1/2 | 11.9 | 36.8 | 20.6 |

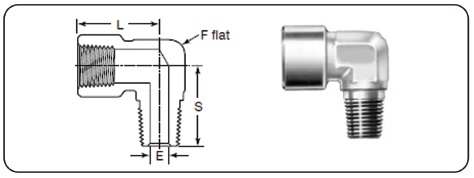

Street Elbow
| NPT Size in. | Dimensions mm | |||
| E | L | S | F | |
| 1/16 | 3 | 21.8 | 22.4 | 11.1 |
| 1/8 | 4.8 | 26.4 | 22.1 | 12.7 |
| 1/4 | 7.1 | 29.7 | 29.7 | 17.5 |
| 3/8 | 9.6 | 36.1 | 32 | 20.6 |
| 1/2 | 11.9 | 39.6 | 39.6 | 25 |
| 3/4 | 15.7 | 48.8 | 42.4 | 31.8 |
| 1 | 22.4 | 48.5 | 49.3 | 42.9 |
Reducing Street Elbow
| Female NPT Size in. | Male NPT Size in. | Dimensions mm | |||
| E | L | S | F | ||
| 1/8 | 1/16 | 3 | 26.4 | 22.1 | 12.7 |
| 1/4 | 1/8 | 4.8 | 29.7 | 25.4 | 17.5 |
| 3/8 | 1/4 | 7.1 | 36.1 | 32 | 20.6 |
| 1/2 | 1/4 | 7.1 | 39.6 | 35.1 | 25.4 |
| 3/8 | 9.6 | 39.6 | 35.1 | 25.4 | |
