Vented Cap Body Grease Fittings
ISO Certificate 9001:2015

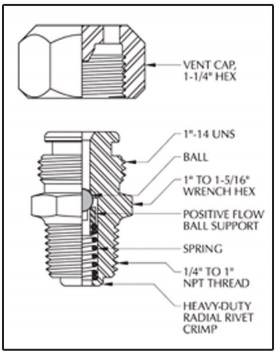

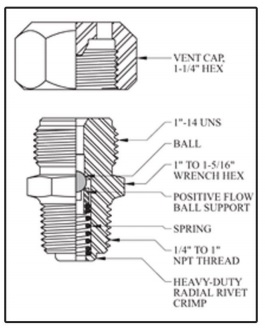

Vented Cap Body Grease Fittings (Standard)
Sizes: 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT & 1" NPT
| Body | Ball | Spring | Heat Treatment | Plating |
| AISI 1215 Carbon Steel | Chrome Alloy | SS302 | _ | Zinc |
| AISI 4140 | Model | Inconel X750 | 22 HRc Max (Nace) | Zinc |
| SS 316 | Model | Inconel X750 | Annealed (Nace) | _ |

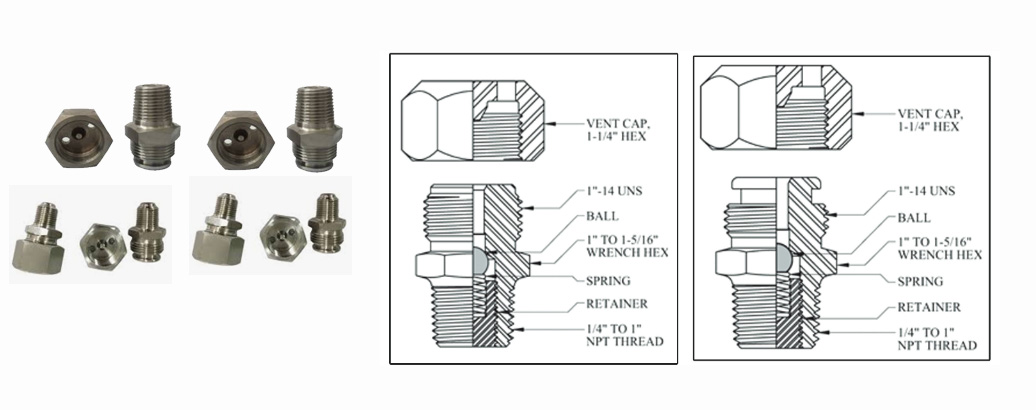

Vented Cap Body Grease Fittings with Giant Button (Standard)
Sizes: 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT & 1" NPT
| Body | Ball | Spring | Heat Treatment | Plating |
| AISI 1215 Carbon Steel | Chrome Alloy | SS302 | _ | Zinc |
| AISI 4140 | Model | Inconel X750 | 22 HRc Max (Nace) | Zinc |
| SS 316 | Model | Inconel X750 | Annealed (Nace) | _ |

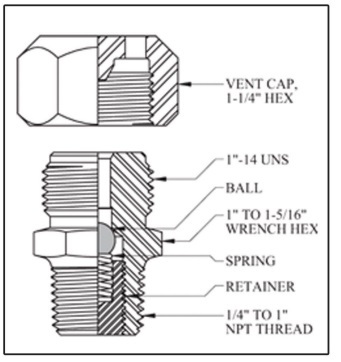

Vented Cap Body Grease Fittings (Special)
Sizes: 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT & 1" NPT
| Body | Ball | Spring | Heat Treatment | Plating |
| AISI 1215 Carbon Steel | Chrome Alloy | SS302 | _ | Zinc |
| AISI 4140 | Model | Inconel X750 | 22 HRc Max (Nace) | Zinc |
| SS 316 | Model | Inconel X750 | Annealed (Nace) | _ |

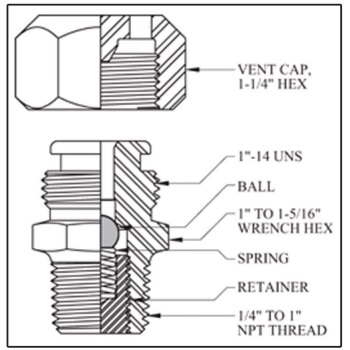

Vented Cap Body Grease Fittings with Giant
Sizes: 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT & 1" NPT
| Body | Ball | Spring | Heat Treatment | Plating |
| AISI 1215 Carbon Steel | Chrome Alloy | SS302 | _ | Zinc |
| AISI 4140 | Model | Inconel X750 | 22 HRc Max (Nace) | Zinc |
| SS 316 | Model | Inconel X750 | Annealed (Nace) | _ |
Industries| Oil & Gas Industry |
|
|---|---|
| Process Industry | |
| Power Industry | |
| Refinery & Petrochemical Industry | |
| Chemical Industry |
Product EnquiryMAFFS Sealant Injection fittings are used to provide lubrication for Valves & Wellhead and to stop the internal leakage of the valve theerby improving system integrity.
These components are machined, assembled and tested to the highest quality standard and follow international standards such as API, ANSI and NACE requirements. Full traceability of the material is recorded and maintained. The pressure range is up to 10000 PSI and the temperature range is upto 180??C. Consult us for higher pressure / temperature requirements.
We are producing below sealant injection fittings :
Vented Cap Body Grease Fittings (Standard)
Vented Cap Body Grease Fittings (Special)
Giant Button Head Fittings
Internal Check Valve Fittings
Stick Injectors
Lock Seal Fittings
Body Vent/Bleeder Fittings
Cavity Plugs
Packing/Bonnet Injection Fittings
Pressure Relief Tool
Fitting Accessories
Leak Lock Fittings
We are the leading Manufacturer / Exporter / Supplier of All kind of Vented Cap Body Grease Fittings like Vented Cap Body Grease Fittings (Standard), Vented Cap Body Grease Fittings with Giant Button (Standard), Vented Cap Body Grease Fittings (Special) and Vented Cap Body Grease Fittings with Giant in India and Overseas.
