Connector Tube Fittings

connector_tube_fittings
Male Connector
connector_tube_fittings

NPT

Tube OD in NPT
Size in		 Dimensions mm
A D E F
1/16 1/16
1/8
1/4		 23.9
26.2
31 		 8.60 1.3 7.9
11.1
14.3
1/8 1/16
1/8
1/4
3/8
1/2		 29.8
30.5
35.6
35.9
42.2 		 12.70 2.3 11.1
11.1
14.3
17.5
22.2
3/16 1/8
1/4		 31.3
36.4 		 13.70 3.1 11.1
14.3
1/4 1/16
1/8
1/4
3/8
1/2
3/4		 32.8
32.8
37.9
38.4
44.8
46.3		 15.20 3.1
4.9
4.9
4.9
4.9
4.9		 12.7
12.7
14.3
17.5
22.2
27
5/16 1/8
1/4
3/8		 34.1
38.7
39.2 		 16.30 4.9
6.4
6.4		 14.3
14.3
17.5
3/8 1/8
1/4
3/8
1/2
3/4
1		 35.4
39.9
39.9
46.3
47.8
54.4		 16.80 4.9
7.2
7.2
7.2
7.2
7.2		 15.9
15.9
17.5
22.2
27
34.9
1/2 1/8
1/4
3/8
1/2
3/4
1		 38.9
43.5
43.5
49.1
50.6
57.2		 22.90 4.9
7.2
9.7
10.5
10.5
10.5		 20.6
20.6
20.6
22.2
27
34.9
5/8 1/4
3/8
1/2
3/4		 44.2
44.2
49.1
50.6 		 24.40 7.2
9.7
12
12.7		 23.8
23.8
23.8
27
3/4 3/8
1/2
3/4
1		 45.8
50.6
50.6
57.2 		 24.40 10.5
12
15.8
15.8		 27
27
27
34.9
7/8 1/2
3/4
1		 50.6
50.6
57.2 		 25.90 12
15.8
18.3		 30.2
30.2
34.9
1 1/2
3/4
1		 57.5
57.5
62.3 		 31.20 12
15.8
22.4		 34.9
1 1/8 1 62.3 31.20 22.4 41.3
1 1/4 1
1 1/4		 77.3 41.10 22.4
27.7		 44.5
1 1/2 1 1/2 88.9 50.00 34.1 54
2 2 113.6 67.60 46 69.9




Tube OD NPT
Size in		 Dimensions mm
A D E F
2 1/8 30.5 12.9 1.7 12
3 1/8
1/4		 30.5
35.6		 12.9 2.4 12
14
4 1/8
1/4		 31.2
36.3		 13.7 2.4 12
14
6 1/8
1/4
3/8
1/2		 32.8
37.9
38.4
44.7		 15.3 4.8 14
14
18
22
8 1/8
1/4
3/8
1/2		 34.2
38.7
39.3
45.6		 16.2 4.8
6.4
6.4
6.4		 15
15
18
22
10 1/8
1/4
3/8
1/2
3/4		 36.3
40.9
40.9
46.5
48.0		 17.2 4.8
7.1
7.9
7.9
7.9		 18
18
18
22
27
12 1/8
1/4
3/8
1/2
3/4		 38.8
43.4
43.4
49.0
50.5		 22.8 4.8
7.1
9.5
9.5
9.5		 22
22
22
22
27
14 1/4
3/8
1/2		 44.1
44.1
49.0		 24.4 7.1
9.5
11.1		 24
15 1/2 49 24.4 11.9 24
16 3/8
1/2
3/4		 44.1
49.0
50.5		 24.4 9.5
11.9
12.7		 24
24
27
18 1/2
3/4		 50.5 24.4 11.9
15.1		 27
20 1/2
3/4		 52.3 26 11.9
15.9		 30
22 3/4
1		 52.3
57.1		 26 15.9
18.3		 30
35
25 1/2
3/4
1		 57.5
57.5
62.3		 31.3 11.9
15.9
21.8		 35
28 1
1 1/4		 72.4
73.1		 36.6 21.8 41
46
28 1
1 1/4		 75.0
77.3		 31.6 24.6 41
46
30 1 1/4 77.2 39.6 26.2 46
32 1 1/4 79.6 42 28.6 46
38 1 1/2 91.6 49.4 33.7 55

# Please note that the dimensions for BSP Tapered threads is same as NPT threads.

connector_tube_fittings

BSP Parallel Threads

Tube OD in ISO Thread Size in Dimensions mm
A D E F
1/8 1/8
1/4
3/8		 33.3
38.1
38.9		 12.7 2.3 14.3
19.1
22.2
1/4 1/8
1/4
3/8
1/2		 35.6
40.4
41.1
43.2		 15.2 4.1
4.8
4.8
4.8		 14.3
19.1
22.2
27
3/8 1/8
1/4
3/8
1/2		 37.8
41.9
42.7
44.7		 16.8 4.1
5.8
7.1
7.1		 15.9
19.1
22.2
27
1/2 1/4
3/8
1/2		 44.7
45.5
47.5
22.9
5.8
7.9
10.4		 20.6
22.2
27
3/4 1/2
3/4		 48.8
52.1		 24.4 11.9
15.7		 27
33.3
1 1/2
3/4
1		 55.6
57.7
59.7		 31.2 11.9
16
19.8		 34.9
34.9
41.3




Tube OD ISO Thread Size in Dimensions mm
A D E F
2 1/8 33.3 12.9 1.7 14
3 1/8
1/4		 33.3
38.1		 12.9 2.4 14
19
4 1/8 34.0 13.7 2.4 14
6 1/8
1/4
3/8
1/2		 35.6
40.4
41.1
43.2		 15.3 4.0
4.8
4.8
4.8		 14
19
22
27
8 1/8
1/4
3/8
1/2		 36.6
41.4
42.2
44.2		 16.2 4.0
5.9
6.4
6.4		 15
19
22
27
10 1/4
3/8
1/2		 42.2
42.9
45.0		 17.2 5.9
7.9
7.9		 19
22
27
12 1/4
3/8
1/2
3/4		 44.5
45.5
47.5
52.1		 22.8 5.9
7.9
9.5
9.5		 22
22
27
35
14 3/8
1/2		 43.9
47.5		 24.4 7.9
11.1		 24
27
15 3/8
1/2
3/4		 45.5
47.5
52.8		 24.4 7.9
11.9
11.9		 24
27
35
16 3/8
1/2
3/4		 45.5
47.5
52.8		 24.4 7.9
11.9
12.7		 24
27
35
18 1/2
3/4		 48.8
52.1		 24.4 11.9
15.1		 27
35
20 1/2
3/4		 50.5
52.6		 26.0 11.9
15.9		 30
35
22 3/4
1		 52.6
54.9		 26.0 15.9
18.3		 35
41
25 3/4
1		 57.7
59.7		 31.3 15.9
19.8		 35
41
28 1
1 1/4		 69.9
72.9		 36.6 19.8
21.8		 41
50
1
1 1/4		 72.5
77.1		 31.6 19.8
24.6		 41
54
30 1 1/4 76.7 39.6 26.2 50
32 1 1/4 79.2 42.0 28.6 50
38 1 1/2 90.9 49.4 31.8 55



# Please note that the dimensions for BSP Tapered threads is same as NPT threads.

O ring Male Connector
connector_tube_fittings

NPT

Tube OD in NPT Size in Dimensions mm
A D E F
1/8 1/8 32.80 12.70 2.30 19.1
1/4 1/8
1/4		 35.1
38.4		 15.20 4.80 19.1
23.8
3/8 1/4
3/8
1/2		 39.9
41.4
47		 16.80 7.10 23.8
28.6
33.3
1/2 1/2 49.80 22.90 10.40 33.3




Straight Thread

Tube OD in SAE/MS Thread Size in Dimensions mm
A D E F
1/16 5/16-24 26.70 8.60 1.30 14.3
1/8 5/16-24 32.80 12.70 2.30 14.3
3/16 3/8-24 34.30 13.70 3.00 15.9
1/4 7/16-20 38.40 15.20 4.80 19.1
5/16 1/2-20 40.60 16.30 6.40 22.2
3/8 9/16-18 42.40 16.80 7.10 23.8
1/2 3/4-16 46.00 22.90 10.40 28.6
3/4 1 1/16-12 52.30 24.40 15.70 38.1
1 1 5/16-12 58.20 31.20 22.40 44.5

Female Connector
connector_tube_fittings

NPT

Tube OD in NPT Size in Dimensions mm
A D E F
1/16 1/16
1/8		 23.6
24.4		 8.60 1.30 11.1
14.3
1/8 1/8
1/4		 28.7
33.5		 12.70 2.30 14.3
19.1
3/16 1/8 29.70 13.70 3.00 14.3
1/4 1/8
1/4
3/8
1/2		 31.2
35.8
37.6
42.4		 15.20 4.80 14.3
19.1
22.2
27
5/16 1/8
1/4		 32
36.8		 16.30 6.40 14.3
19.1
3/8 1/8
1/4
3/8
1/2
3/4		 32.8
37.6
39.1
43.9
47.8		 16.80 7.10 15.9
19.1
22.2
27
33.3
1/2 1/4
3/8
1/2
3/4		 40.4
41.9
46.7
48.3		 22.90 10.40 20.6
22.2
27
33.3
5/8 3/8
1/2
3/4		 41.9
46.7
48.3		 24.40 12.70 23.8
27
33.3
3/4 1/2
3/4		 46.7
48.3		 24.40 15.70 27
33.3
7/8 3/4 49.80 25.90 18.30 33.3
1 3/4
1		 53.3
62.2		 31.20 22.40 34.9
41.3
1 1/4 1 1/4 74.70 41.10 27.70 54
1 1/2 1 1/2 83.30 50.00 34.00 60.3
2 2 101.60 67.60 46.00 73



Tube OD NPT Size in Dimensions mm
A D E F
3 1/8
1/4		 28.7
33.5		 12.9 2.4 14
19
4 1/8 29.7 13.7 2.4 14
6 1/8
1/4
3/8
1/2		 31.3
35.8
37.6
42.5		 15.3 4.8 14
19
22
27
8 1/8
1/4
3/8
1/2		 32.1
37.0
38.5
43.3		 16.2 6.4 15
19
22
27
10 1/4
3/8
1/2		 37.8
39.4
44.2		 17.2 7.9 19
22
27
12 1/4
3/8
1/2		 40.3
41.9
46.7		 22.8 9.5 22
22
27
15 1/2 46.7 24.4 11.9 27
16 1/2 46.9 24.4 12.7 27
20 1/2
3/4		 47.9
49.7		 26.0 15.9 30
35
22 3/4
1		 49.7
57.9		 26.0 18.3 35
41
25 3/4
1		 53.4
62.3		 31.3 21.8 35
41
Bulkhead Female Connector
connector_tube_fittings

NPT

Tube OD in NPT Size in. Dimensions mm
A D E F Panel Hole Size Max Panel Thickness
1/8 1/8 44.70 12.70 2.30 14.3 8.3 12.70
1/4 1/8
1/4		 47
51.8		 15.20 4.80 15.9
19.1		 11.5 10.20
3/8 1/4 55.10 16.80 7.10 19.1 14.7 11.20
1/2 3/8
1/2		 61.7
66.5		 22.90 10.40 23.8
27		 19.4 12.70


Tube OD NPT Size in. Dimensions mm
A D E F Panel Hole Size Max Panel Thickness
6 1/4 51.8 15.3 4.8 19 11.5 10.2
12 1/2 66.5 22.8 9.5 27 19.5 12.7
Bulkhead Male Connector
connector_tube_fittings

NPT

Tube OD in NPT Size in. Dimensions mm
A D E F Panel Hole Size Max Panel Thickness
1/8 1/8 46.50 12.70 2.30 12.7 8.3 12.70
1/4 1/8
1/4		 49.5
54.1		 15.20 4.80 15.9 11.5 10.20
3/8 1/4
3/8
1/2		 57.4
57.4
63.8		 16.80 7.10 19.1
19.1
22.2		 14.7 11.20
1/2 3/8
1/2		 63.2
68.8		 22.90 9.7
10.4		 23.8 19.4 12.70
3/4 3/4 76.20 24.40 15.70 30.2 25.8 16.80
1 1 93.20 31.20 22.40 41.3 33.7 19.10


Tube OD  NPT Size in. Dimensions mm
A D E F Panel Hole Size Max Panel Thickness
6 1/8
1/4		 49.5
53.6		 15.3 4.8 16 11.5 10.2
12 1/2 68.8 22.8 9.5 24 19.5 12.7
Port Connector
connector_tube_fittings

Up to 25 mm size

Tube OD in Dimensions mm
E H
1/16 0.80 13.70
1/8 2.00 22.40
1/4 4.30 24.90
5/16 5.60 25.90
3/8 6.90 26.70
1/2 9.40 36.30
5/8 11.90 37.80
3/4 14.70 37.80
1 20.30 49.30
1 1/4 25.90 69.10
1 1/2 31.80 84.10
2 43.70 115.80



connector_tube_fittings

Above 25 mm size

Tube OD Dimensions mm
E H
3 1.9 22.2
6 4.1 25.0
8 5.6 26.0
10 7.1 27.1
12 8.8 36.2
15 11.2 37.8
16 12.0 37.8
18 13.9 37.8
20 15.5 39.4
25 19.9 49.3
28 22.6 49.0
28 22.5 63.5
30 24.3 67.6
32 26.5 69.7
38 31.6 81.9




Reducing Port Connector
connector_tube_fittings
Tube OD in Dimensions mm
T Tx E H
1/8 1/16 0.80 18.30
1/4 1/16 0.80 19.10
1/8 2.00 22.90
3/8 1/8 2.00 23.40
1/4 4.30 25.40
1/2 1/4 4.30 29.70
3/8 6.90 30.70
3/4 1/2 9.40 37.80
1 1/2 9.40 42.90
3/4 14.70 43.70


Tube OD Dimensions mm
T Tx E H
6 3 1.9 22.9
8 6 4.1 25.4
10 6 4.1 25.8
8 5.6 26.3
12 6 4.1 29.6
8
10		 5.6
7.1		 30.1
30.6
16 12 8.8 37.5
28 25 19.8 56.5
32 25 19.8 60.3
38 25 19.8 65.8



Male Weld Connector
connector_tube_fittings

Socket Weld

Tube OD in Socket Weld Size in Dimensions mm
A B D E J
1/8 1/8 29.00 2.50 12.70 2.30 7.40
1/4 1/4 33.50 7.10 15.20 4.80 12.20
3/8 3/8 37.60 7.90 16.80 7.10 15.20
1/2 1/2 41.10 9.70 22.90 10.40 18.50
3/4 3/4 43.40 11.20 24.40 15.70 26.40
1 1 52.60 15.70 31.20 22.40 34.50


connector_tube_fittings

Butt Weld

Tube OD in Pipe Weld Size in Dimensions mm
A D E F J
1/8 1/8 30.50 12.70 2.30 11.1 10.30
3/16 1/8 31.20 13.70 3.00 11.1 10.30
1/4 1/8
1/4		 32.8
37.8		 15.20 4.80 12.7
14.3		 10.3
13.7
5/16 1/8
1/4		 34
38.6		 16.30 5.3
6.4		 14.3 10.3
13.7
3/8 1/4
3/8
1/2
3/4		 39.9
39.9
46.2
47.8		 16.80 7.10 15.9
17.5
22.2
27		 13.7
17
21.3
26.7
1/2 3/8
1/2
3/4
1		 43.4
49
50.5
57.2		 22.90 10.40 20.6
22.2
27
34.9		 17.1
21.3
26.7
33.4
5/8 1/2 49.00 24.40 12.70 23.8 21.30
3/4 1/2
3/4		 50.50 24.40 14
15.7		 27 21.3
26.7
1 1 62.20 31.20 22.40 34.9 33.40
1 1/4 1 1/4 77.20 41.10 27.70 44.5 42.20
1 1/2 1 1/2 88.90 50.00 34.00 54 48.30
2 2 113.50 67.60 46.00 69.9 60.30


Tube OD Pipe Weld Size in. Dimensions mm
A D E F J
3 1/8 30.5 12.9 2.4 12 10.3
4 1/8 31.2 13.7 2.4 12 10.3
6 1/8
1/4		 32.8
37.9		 15.3 4.8 14 10.3
13.7
8 1/8
1/4
1/2		 34.2
38.7
45.6		 16.2 5.4
6.4
6.4		 15
15
22		 10.3
13.7
21.3
10 1/4
3/8
1/2		 40.9
40.9
46.5		 17.2 7.5
7.9
7.9		 18
18
22		 13.7
17.1
21.3
12 1/4
3/8
1/2
3/4		 43.4
43.4
49.0
50.5		 22.8 7.5
9.5
9.5
9.5		 22
22
22
27		 13.7
17.1
21.3
26.7
14 3/8 44.1 24.4 10.7 24 17.1
15 1/2 49.0 24.4 11.9 24 21.3
16 1/2 49.0 24.4 12.7 24 21.3
18 1/2 50.5 24.4 13.9 27 21.3
30 1 1/4 77.2 39.6 26.2 46 42.2
32 1 1/4 79.6 42.0 28.6 46 42.2
38 1 1/2 91.6 49.4 33.7 55 48.3



Industries
Oil & Gas Industry
Gate Valve Indutries
Process Industry
Power Industry
Refinery & Petrochemical Industry
Chemical Industry
Product Enquiry

Product Enquiry Form

Connector Tube Fittings

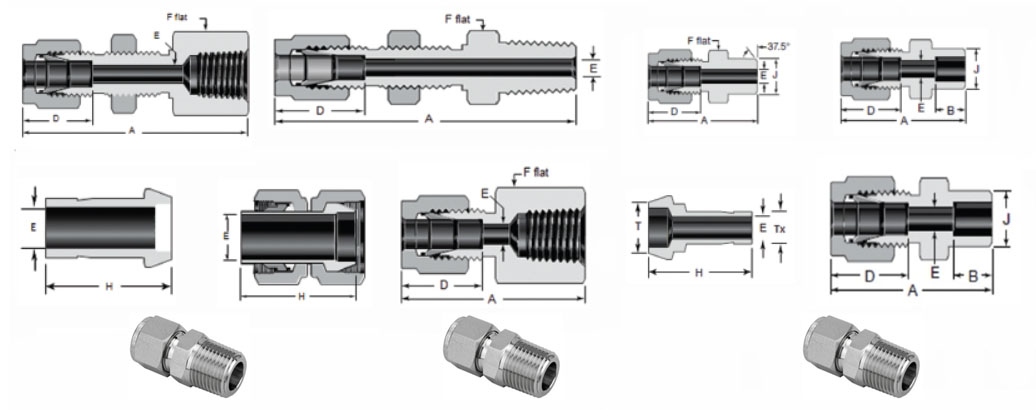

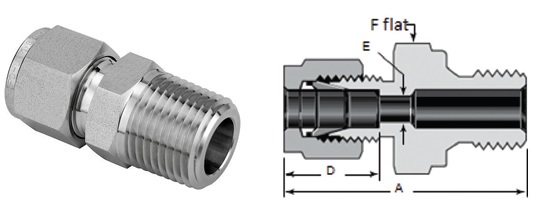

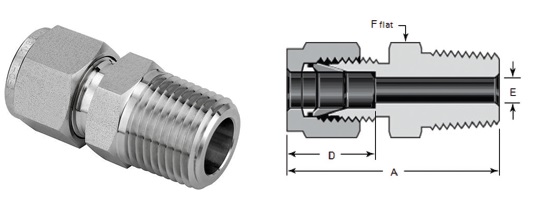

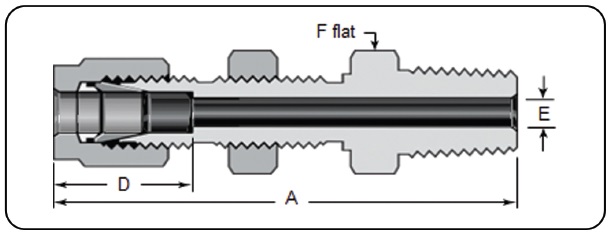

We are the leading Manufacturer / Exporter / Supplier of All kind of Connector Tube Fittings like Male Connector, O ring Male Connector, Female Connector, Bulkhead Female Connector, Bulkhead Male Connector, Port Connector, Reducing Port Connector, Male Weld Connector etc in India and Overseas.

Our Products

Industrial Valves
Instrumentation Valve
Pipe Fittings
Tube Fittings
Sealant Injection Fittings
Copyright © Maffs Valves & Fittings Pvt Ltd 2022. All rights reserved.
