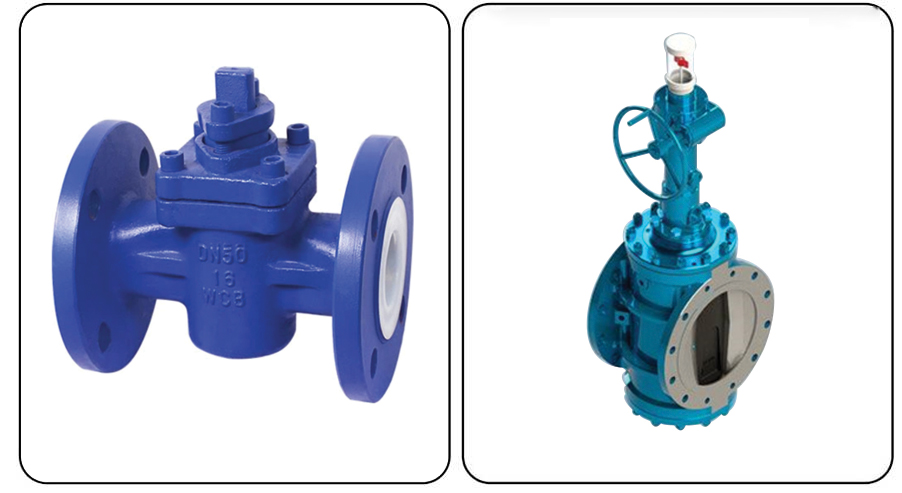

Plug Valve
ISO Certificate 9001:2015
Product Specifications| Product Type |
Plug Valve Soft Seated / Metal Seated |
|---|---|
| Valve Size | 2" to 24" |
| Pressure Class | 150, 300, 600 |
| Ends | RF, RTJ, BWE |
| Operation | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electrical) |
| Materials | Carbon Steel, Stainless Steel, Alloy Steel, DSS & SDSS |
| Design Features | Taper Plug Design Anti-Static Design Anti-Blow out Stem PTFE Sleeve Body Drain & Vent Connections Double Block & Bleed Lower operating torque |
Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open.
Applicable Standards| Design Standard | API 6D, API 599 |
|---|---|
| P-T Rating | ASME B16.34 |
| Face to Face | API 6D, ASME B16.10 |
| End Connections | ASME B16.5, ASME B16.25 |
| Testing | API 6D, API 598 |
| Fire Safe | API 607, API 6FA, ISO 10497 |
| NACE Requirement* | NACE MR-01-75, NACE MR-01-03 |
| FET Testing* | ISO 15848 |
| Cryo Test* | BS 6364 |
* On request.
Industries| Oil & Gas Industry |
|
|---|---|
| Refinery & Petrochemical Industry | |
| Power Industry | |
| Chemical Industry | |
| Water & Waste water Industry | |
| Pharmaceutical Industry | |
| Food & Beverage Industry | |
| Pulp & Paper Industry |
Product Enquiry
Double injector for lubrication can be provided on request.
Low emission packing set available for special service.
We are the leading Manufacturer / Exporter / Supplier of Plug Valve in India and Overseas.
