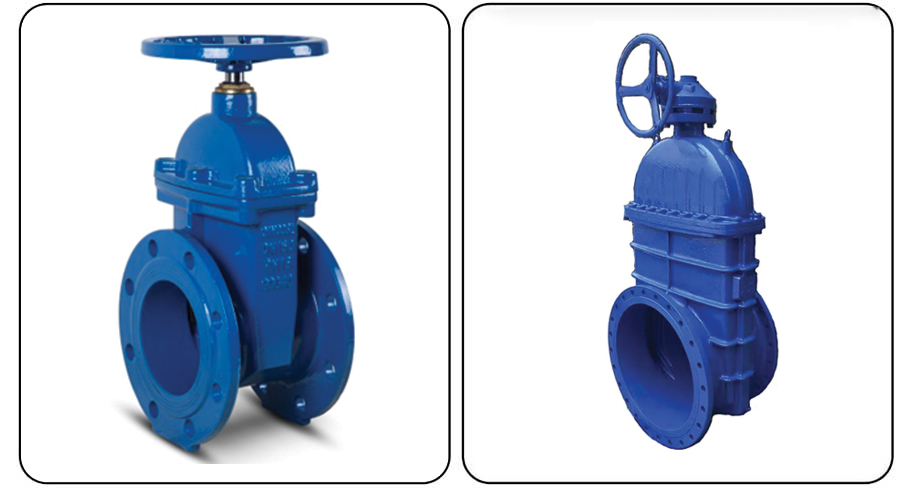

Gate Valve
ISO Certificate 9001:2015
Product Specifications| Product Type |
Gate Valve Standard Bore / Regular Bore |
|---|---|
| Valve Size | 2" to 36" |
| Pressure Class | 150, 300, 600, 900, 1500, 2500 |
| Ends | RF, RTJ, BWE |
| Operation | Handwheel, Gear, Actuator (Pneumatic, Electrical) |
| Materials | Carbon Steel, Stainless Steel, Alloy Steel, DSS & SDSS |
| Design Features | Bolted Bonnet / Pressure Seal Bonnet Solid Wedge / Flexible Wedge / Parallel Slide OS&Y Rising Stem Renewable Seats Bypass and Equalizing Arrangement |
A Gate Valve is generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions. A gate valve consists of a valve body, seat and disc, a spindle, gland, and a wheel for operating the valve..
Applicable Standards| Design Standard | API 600, API 6D, ASME B16.34 |
|---|---|
| P-T Rating | ASME B16.34 |
| Face to Face | ASME B16.10 |
| End Connections | ASME B16.5, ASME B16.47, ASME B16.25 |
| Testing | API 598 |
| NACE Requirement* | NACE MR-01-75, NACE MR-01-03 |
| FET Testing* | API 624 |
| Cryo Test* | BS 6364 |
* On request.
Industries| Oil & Gas Industry |
|
|---|---|
| Process Industry | |
| Power Industry | |
| Refinery & Petrochemical Industry | |
| Chemical Industry |
Product Enquiry
ISO 5210 top mounting plate for direct mounting of a wide range of actuators and gears.
We are the leading Manufacturer / Exporter / Supplier of Gate Valve in India and Overseas.
